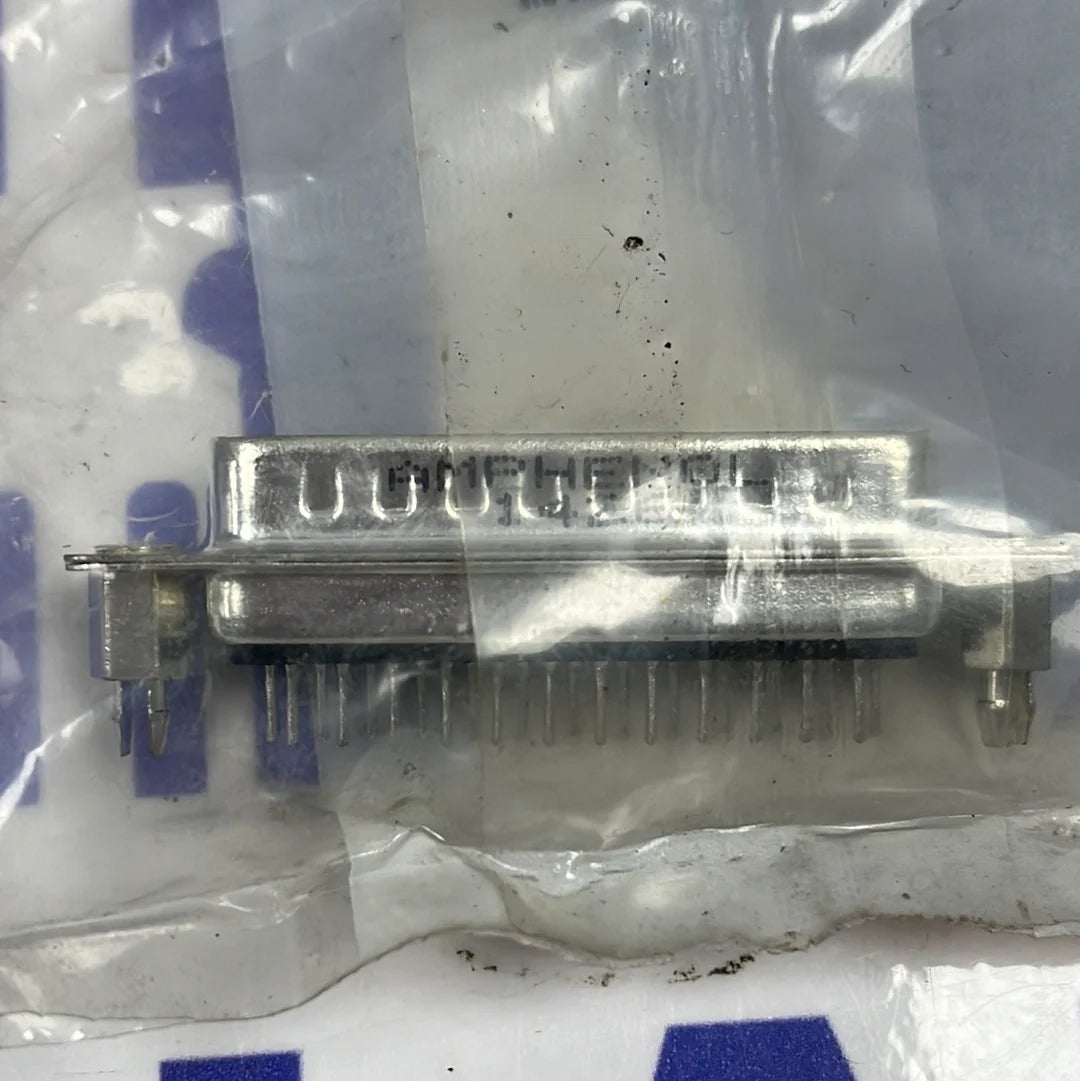

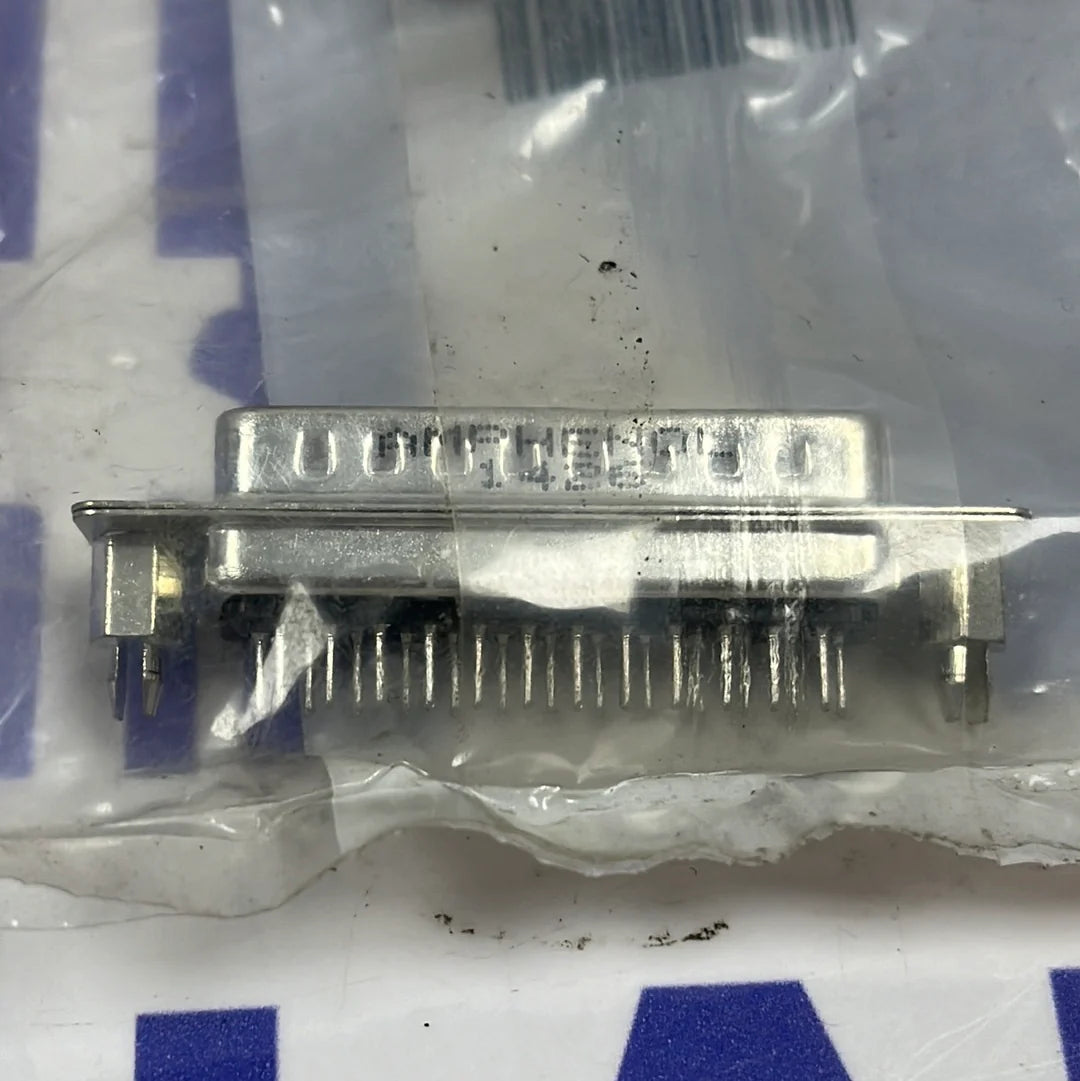

L717SD BH25P OL2 RM5

L717SD BH25P OL2 RM5
Brand    Amphenol Communications Solutions
Number of Contacts    25
Gender    Male
Body Orientation    Straight
Mounting Type    Panel Mount
Pitch    2.77mm
Mounting Hardware    4-40 UNC, Threaded Insert
Termination Method    Solder
Current Rating    5.0A
Housing Material    Thermoplastic
Voltage Rating    250.0 V
Length    53.04mm
Width    12.1mm
Depth    12.55mm
Series    L717SD
Dimensions    53.04 x 12.1 x 12.55mm
Contact Plating    Gold
Contact Material    Brass
Maximum Operating Temperature    +125°C
Minimum Operating Temperature    -55.0°C
