Industrial Automation Products

BIMBA • RKD13591

FM-0940-3B
CYLINDER
METRIC
DOUBLE ACTING
SINGLE END ROD
27MM BORE
40MM STROKE
THREADED MOUNTING HOLES
BOTH ENDS
BUMPERS ON
EXTEND &
RETRACT

BIMBA • RKD3649405

FM-095-4F
CYLINDER
27MM BORE
25MM STROKE

BIMBA • RKD112190

FM-0950-XI
PNEUMATIC CYLINDER 27MM BORE 50MM STROKE

BIMBA • RKD112192

FM-0980
DISCONTINUED BY MANUFACTURER
METRIC DOUBLE ACTING
SINGLE END ROD
27MM BORE
STROKE: 80MM

BIMBA • RKD3649407

FM-1710
CYLINDER
38MM BORE
10MM STROKE

BIMBA • RKD55464

FM-17100-1
PNEUMATIC CYLINDER FLAT-1

BIMBA • RKD3521686

FM-1725-4MTF
PNEUMATIC CYLINDER
METRIC DOUBLE ACTING
SINGLE END ROD
38MM
STROKE: 25MM
SCREW CLEARANCE HOLES
BOTH ENDS
MALE THREAD

BIMBA • RKD1288748

FM-30-2-OS
ROD BUSHING - SERIES FMOVERSIZED ROD DIAMETER

BIMBA • RKD3649411

FM-3110-4FL
CYLINDER
50MM BORE
10MM STROKE
LOW FRICTION

BIMBA • RKD7417

FM-3125-1MT
PNEUMATIC CYLINDER FLAT-1 50MM BORE 25MM STROKE

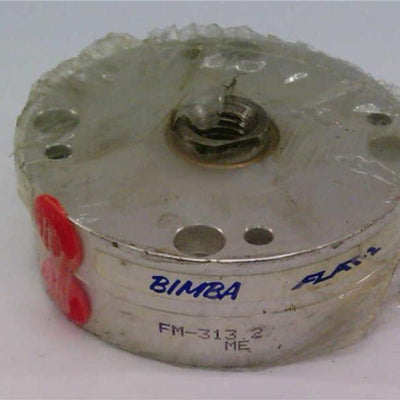

BIMBA • RKD112197

FM-313-2
BIMBA
FM-313-2
FM3132
PNEUMATIC CYLINDER
ROUND BODY
FLAT-1

BIMBA • RKD13593

FM-3140-4F
CYLINDER
50MM BORE
40MM STROKE

BIMBA • RKD1398343

FM-MF1-1.50X3
DISCONTINUED BY MANUFACTURER
PNEUMATIC CYLINDER
FM SERIES
MS1 FRONT AND REAR END ANGLE
SINGLE ROD
1.50"
BORE
3"
STROKE

BIMBA • RKD1384818

FM-MS4-1.50X8-HC-MPR
PNEUMATIC CYLINDER
FM SERIES
FLUSH MOUNT
SINGLE ROD
1.5"
BORE
0.25"
NPT
17 BAR
ADJUSTABLE CUSHIONS
MAGNETIC PISTON

BIMBA • RKD1398345

FM-MS4-1.5X12-HC-MPR
FLUSH MOUNT CYLINDER
BOTTOM TAPPED HOLES MOUNT
1.5"
BORE
12"
STROKE
HEAD &
CAP CUSHIONS
MAGNETIC PISTON

BIMBA • RKD1398348

FM-MS4-1.5X20-HC-MPR
CYLINDER
FLUSH MOUNT SERIES
DBL-ACTING
BOTTOM TAPPED HOLE MOUNT
1-1/2 IN. BORE
20 IN. STROKE
MAGNETIC PISTON
5/8 IN. Ø
ROD WITH 7/16-20 MALE THREAD
1/4 NPT PNEUMATIC CONNECTION PORTS
ADJUSTABLE CUSHIONS BOTH ENDS

BIMBA • RKD1288750

FM-MS4-2.5-26.5-HC-MPR
PNEUMATIC CYLINDER
FM SERIES
2.5 INCH BORE
26.5 INCH STROKE
FLUSH MOUNT
SINGLE ROD
1/4 INCH NPTF
250PSI MAX

BIMBA • RKD3521688

FM-MS4-2.5X1-MPR
TRD CYLINDER
2.5"
BORE
1"
STROKE

BIMBA • RKD1349866

FM-MS4-2X2-HC-MPR
DISCONTINUED BY MANUFACTURER
PNEUMATIC CYLINDER
250PSI
BOTTOM TAPPED
2INCH BORE
2INCH STROKE
HEAD/CAP CUSHION
MAGNETIC PISTON FOR REED

BIMBA • RKD1248177

FM-MS4-2X3-HC-MPR
CYLINDER
FM SERIES
BOTTOM TAPPED HOLES
SINGLE ROD
2"
BORE
3"
STROKE
STANDARD HEAD CUSHION
MAGNETIC PISTON
1/4"
NPTF

BIMBA • RKD3586928

FM-MS4-3.25X12-MPR
PNEUMATIC CYLINDER
FLUSH MOUNT
SINGLE ROD
3.25 BORE
0.125 STROKE
3/8 NPTF

BIMBA • RKD112208

FM-MS4-4X8-HC-MPR
PNEUMATIC CYLINDER
FM SERIES
250PSI AIR
NFPA MOUNTS: BOTTOM TAPPED HOLES
SINGLE ROD
4 IN BORE
8 IN STROKE

BIMBA • RKD1349869

FM-MX0-1.5X1.5-RL-063150
ROD LOCK CYLINDER
FM SERIES
SINGLE ROD
1.50 BORE
1.50 STROKE
1/4IN NPTF
0.625IN ROD SIZE
1.50IN ROD BORE
250 PSI MAX

BIMBA • RKD55466

FMD-0415-4H
BIMBA
FMD-0415-4H
PNEUMATIC CYLINDER
